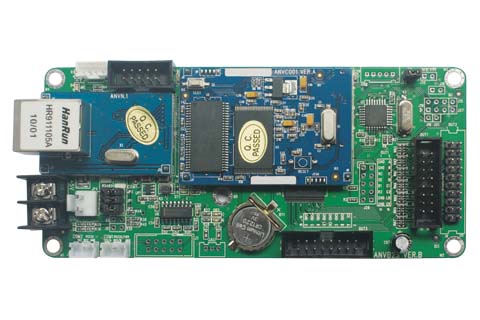

C-Power3200

Animation controller Dual colors 32768 pix 10 windows division More functions

 【Product Introduction】

    C-Power3200 is a member of C-Power new platform family. It's a advanced animation and graphic LED screen controller, which is released by Shenzhen Lumen Electronics Co. Ltd.

    It has the higer performance,more functions,and larger memory than the last generation controllers.



【Feature and Specification】

Control size
 (mono/RG color)

32,768 pixels
Self adjustment the size,such as 512*64, 1024*32

Memory
Total size: 256MByte(2Gbit)
Program size: 128MByte
Font library space: 128MByte

Program


All programs are transmitted by compression package, and then decompressed on control card.
Supports animation(swf,gif) , picture, text, clock, temperature, etc.
Text program edit in any language, any font and any size, free adjust
 Transparent text and clock program can be edit to cover photo
 More than 60 effects for text and picture, such as: snow fall, mosaic, slide zebra, fan open and etc.,
With multi-program mode. Stores up to 512 programs to the Led screen.
With hierarchical management of programs in menu type so as to keep clear structure and convenient maintenance.
Supports programs played at the appointed period (for example: week, hour, minute )
Separate window mode
Supports the segmentation of up to ten playing windows for each program. Supports playing the content in different formats for each playing window.
Affiliated features
With real-time clock (RTC) management and setting, support digital and analogue clock.
Supports environmental data programs like temperature, etc.
 Supports sensors installed externally (32-grade brightness)

 Font library

The card can be stored different font library and can be changed free, such as English, Chinese (simplified or traditional), Japanese, Korean and etc.,

Up to 8 different font libraries can be stored and displayed at the same time
We supply font library edit tools and update tools

Support Hong Kong supplementary character fonts, Hindi

Standard software
Standard communication mode

RS232/RS485 : maximum baud rate: 115200
network version: TCP/IP network interface, encrypted message transmission
USB flash disk version: USB interface
GPRS version: integrate GPRS module(Dual-band or Quad-band)

InDa remote & keyboard
Program list edit and display control by infrared controller or keyboard
External communication components
Supports various wireless communication modes: WIFI, GPRS, ZigBee, RF...
Others
Provides customized development interface and its manual, the interface is same to C-Power5200
Provides demonstration program and source code forcustomized development



【Relevant Download】

Software

Vidieo decoder     Part1Part2Part3Part4Part5Part6
LedCenter  is a professional LED control system supporting software and can support Lumen LED control system
To support AVI video, the decoder should be installed on the computer first.

Operation manual

1.Software operation manual
      manual of LedCenterM V5.0 click to download
2. IrDa remoter control manual click to download
1.Software operation manual
2. IrDa remoter control manual

Tools and handbook

1. Installation handbook  click to download

2. Schematic diagram for installation of the card:

                                        click to download

1. Hardware installation and debugging handbook for engineers.

2. Schematic diagram for layout, size and installation position of the ANVB3S CPU card.

Interface handbook for customized development

 API and manuals  click to download

DLL and interface handbook for customized development
(Updated on Aug30, 2012)

Demo program and source code for customized development

 DLL development package click to download

It includes demo program and source codes for customized development.
(Updated on Aug30, 2012)

 External protocol

External communication protocol click to download External calls communication protocol

  Plug board and gusset plate



 Two KB20(HUB08) interface on board:
2 A   B  C   D    G1  G2  LD CK 16
1 N  N  N  OE  R1  R2   N   N   15

One KB04(HUB12) interface on board:
2  A   B  C  CK LD R G D 16
1 OE N N   N   N   N N N 15
